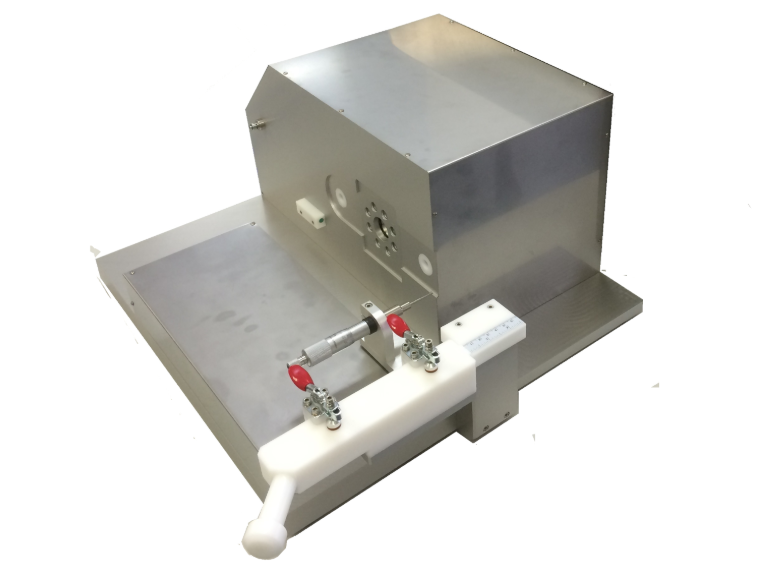

The CR-60-HC crimper is a crimper developed for crimping biopolymer stents on balloon catheters.
The system can both heat and cool the stents and has an internal inflation / deflatiom system for optimum stent embedding. This results in high retension forces.
The system is diameter controlled and the products are loaded into the system using a unique product alignment system that allows alignment with the final catheter product outside the crimper head.
The blades are 60 mm long and the maximum opening of the system is 20 mm. It can fully close. Using the unique MPT Europe BV stent crimping technology a big advantage to processing biopolymer stents is the minium relative motion the system has. This puts minimal stresses on the product during the crimping actions.
|Technical Specification Stent Crimping CR-60-HC for Biopolymer Stents|
|Stent crimping length||60 mm|
|Stent type||Biopolymer stents|
|Maximum crimper diameter||20 mm|
|Cooling & Heating||8C – 80C process programmable|
|Maximum crimping force||300N radial|
|Diameter accuracy||+/- 0.02 mm @ 100N|
|Crimp speed||0.1 – 10 mm /s|
|Catheter inflation/deflation||Integrated 6 bar / -0.8 bar|
|Stent loading||With external product alignment and manual transfer|
|GUI||4.5” color touch panel|
|Control software||Recipe based|
Password levels (operator, engineer, calibrator)
Remote support option
|Required airpressure||7 bar minium|
|Power supply||115 or 240VAC / 0.8kW|
