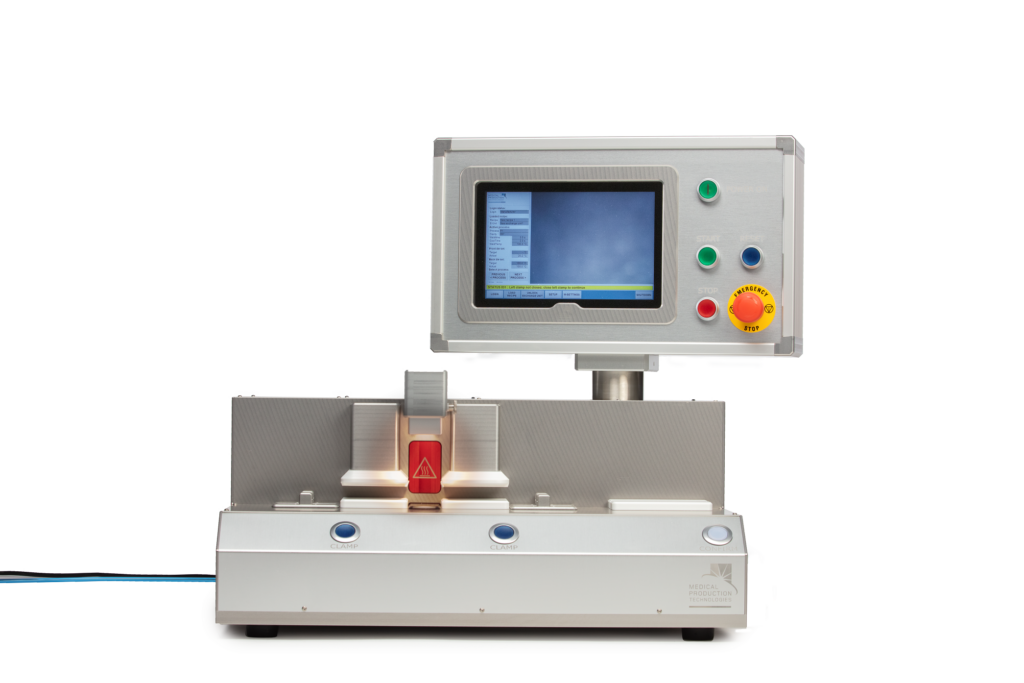

The BT-NG thermal bonder is the latest development in bonder technology developed by MPT Europe BV.
The bonder has a large number of new features and (in the BT-NG-2 version) is capable of bonding two products simultaniously with weld individual temperature control.
The system is fitted with fast exchange die units with fully automatic plug in functionallity for the electrical and pneumatic connection.
An onboard lightsource make sure the built in color cameras perfectly visualize the product you want to weld. The recipe controlled crosshairs can easiliy be manipulated on the 10″touchscreen and they can be set to a variaty of colors.
The exchange unit is positioned using a stepper motor allowing for extremely easy alignment of the dies in respect to the product.
Optional axial compression modules can be mounted on either side of the die module.
This machine incorporates all our bonding technology in an ergonomic and high quality machine. Providing you with the stability and reliability to develop a good process.
| Technical Specification | BT-NG Termal bonder |
| Die system | 2 split dies with quick exchange units |
| Number of die cavities | Max. 6 with recipe controlled positioning |
| Maximum weld temperature | 260C per die individual adjustable |
| Product handling | Product fixed with exchangable inlays. Optional axial compression units Optional 2 products simultanious processing |
| Product alignment | Optical with the aid of color camera and crosshairs |
| GUI | 10” color touch panel |
| Control software | Recipe based Password levels (operator, engineer, calibrator) Remote support option |
| Required airpressure | 7 bar |
| Power supply | 115 -240VAC / 0.5kW |
